Antenna - part of wireless system, we make it !
- …
Antenna - part of wireless system, we make it !
- …
Link AI you & me from choose a good antenna !
New product:
Wi-fi 6 antenna, used Industrial, media, AI box.
New product:
5G OMNI antenna: N male, using outdoor AI, media device directly, short, low cost.
What We Make:
Pro-cell co.,ltd : An antenna manufacturer since 1995 in Taiwan, keep going to make & tuning every antenna in our own factory, make indoor, outdoor antenna for Wi-fi, 4G, 5G, Sub-1G (Like Rola, RFID, ADS-B) system in rescue, AI, insustry, Media. Focus on Antenna products frequency 100MHz-6GHz.
Antenna :
Panel antenna, OMNI antenna, Yagi antenna, Sector antenna, Rubber antenna, Stubby antenna, Miniature antenna, Whip antenna, Adhesive antenna,

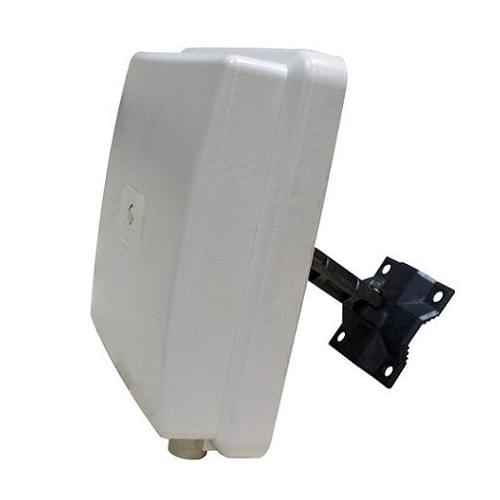

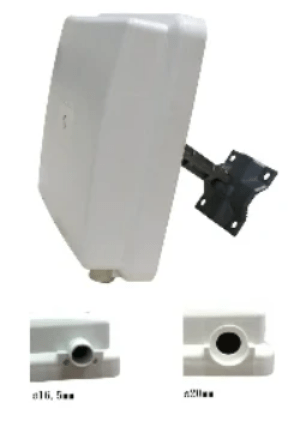

Weather proof seal box
Plastic type: IP65 or IP67 Box, Aluminum type: IP67 Box, Whole Aluminum IP67 Box. Repeatable opening, weather prove sealed box. can be used for Telecom, AI , media box, green power,

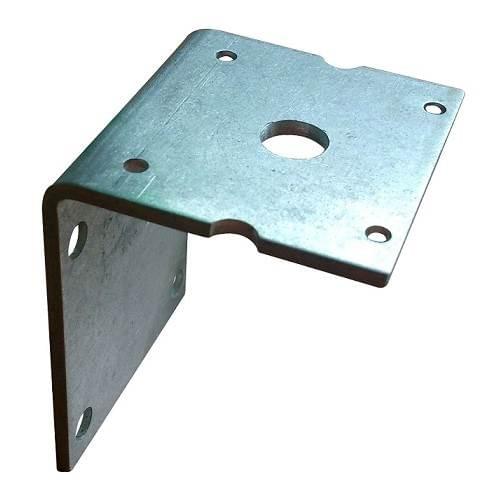

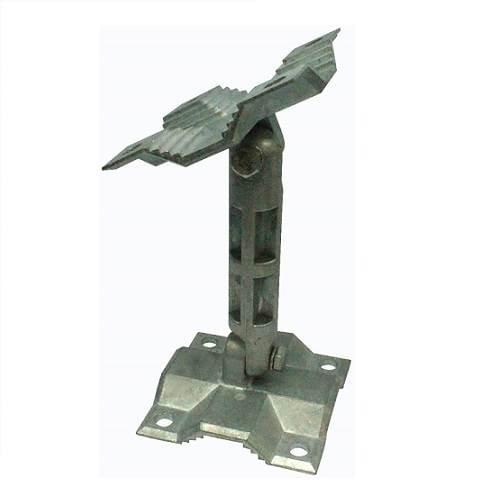

Mounting Kits
Aluminum Universal mounting kits, Stainless Universal adjustable mounting kit, L mounting kits, Plastic mounting kits.

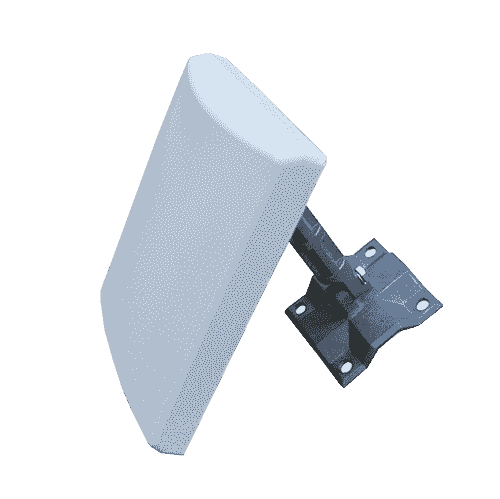

Panel antenna
50Ohm antenna, Most is Linear Vertical polarization , few are circular, few are dual polarization. Narrow direction, good to use point to point wireless long distance outdoor transmission.
LHCP Polarization RFID
PAQ-LHCP-08-08
433MHz, 8dBi, N Female, 410*410*44mm LHCP circular polarization
RHCP Polarization RFID
PAQ-RHCP-08-08
433MHz, 8dBi, N Female, 410*410*44mm RHCP circular polarization
900MHz RFID,Rola
PAA-001-01
950-955MHz, 7dBi, N Female, 198*198*60mm
900MHz RFID,Rola
PAA-001
860-930MHz,8dBi, N Female 198*198*60mm
900MHz RFID,Rola
PAA-002
900-930MHz, 8dBi, N Female, 198*198*60mm
LHCP -900MHz, Polarization RFID
PAA-LHCP-08-08
900-930MHz, 8dBi, N Female, 198*198*60mm, LHCP circular polarization
RHCP-900MHz, Polarization RFID
PAA-RHCP-08-08
900-930MHz, 8dBi, N Female, 198*198*60mm, RHCP circular polarization

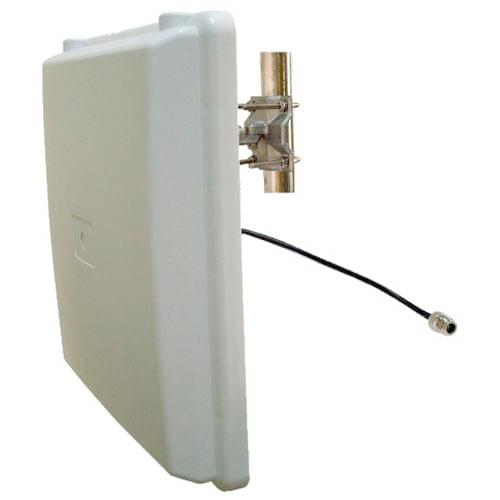

700MHz,4G
PAQ-L001
760-830MHz, 9dBi, N Female, 342*372*63.5mm
700MHz. 4G
PAQ-L002
700-750MHz, 9dBi, N Male, 342*372*63.5mm
700MHz. 4G
PAQ-X01
760-862MHz, 10dBi, N Female 410*410*44mm
900MHz RFID,Rola
PAA-X01
860-960MHz, 12dBi, N Female, 410*410*44mm
Multi band, 4G
PAU5-A08-3-071008
790-960/1710-2170/2300-2700MHz : 7/10/8dBi, N Female, 198*198*60.3mm
Multi band, 4G
PAU5-X08-3-091310
790-960/1710-2170/2500-2700MHz: 9/13/10dBi, N Female, 410*410*44mm
Multi band, 4G
PA2U5-X08-071008
790-960/1710-2170/2300-2700MHz: 7/10/8dBi, N Female*2, 410*410*44mm
Multi band, 3.5G, UMTS
PAU-L002
820-900/1900-2170MHz: 8/13dBi, N Female, 342*372*64mm
Multi band, 3.5G
PAU-L001
860-920/1900-2170MHz: 8/13dBi, N Female, 342*372*64mm
Multi band, 3.5G
PAU-L001-02
890-960/1900-2170MHz: 8/13dBi, N Female, 342*372*64mm
Multi band, 3.5G
PAU-L001-01
935-960/1900-2170MHz: 9/14dBi, N Female, 342*372*64mm
Other band
PAT-L001
1150-1300MHz, 14dBi, N Female, 372*342*195mm
Multi band,3.5G
PAU-T08-1721-12
1710-2170MHz, 12dBi, N Female, 165.1*140.1*16mm
Multi band, 3.5G
PAK-001
1900-2140MHz, 14dBi, N Female, 198*198*60mm
Multi band, 3G

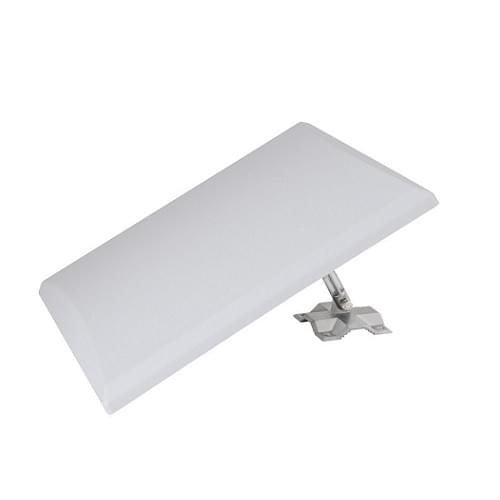

PAF-L01
2100MHz15dBiN Female330*295*35mm
Dual polarization 2.4GHz, Wi-fi
PA2D-T08-1010
2400-2500MHz, 10dBi, N Female*2, 165*140*16mm
2.4GHz, Wi-fi, Zigbee
PA-T01L
2400-2483.5MHz, 12dBi, N Female, 140*165*14.5mm
2.4GHz, Wi-fi, Zigbee
PA-T01
2400-2483.5MHz, 12dBi, N Female, 140*165*14.5mm
2.4GHz, Wi-fi, Zigbee
PA-M01
2400-2483.5MHz, 12dBi, N Female, 166*140*30mm
2.6GHz,4G
PAX-M01
2500-2700MHz, 12dBi, N Female, 166*140*30mm
2.6GHz,4G
PA2D-Q08-1313
2500-2700MHz, 12dBi, N Female, 166*140*30mm
2.4GHz, Wi-fi, Zigbee
PA-Q01
2400-2500MHz, 15dBi, N Female, 256*226.5*19mm
Dual polarization 2.4GHz, Wi-fi
PA2D-L08-1515
2400-2500MHz, 15dBi, N Female*2, 330*295*30mm
2.4GHz, Wi-fi, Zigbee
PA-L01
2400-2500MHz, 18dBi, N Female, 330*295*30mm
2.4GHz, Wi-fi, Zigbee
PA-x01
2400-2500MHz, 20.5dBi, N Female, 410*410*44mm
Dual polarization Dual band, Wi-fi
PA2L-M08-0810
2400-2485/5100-5900MHz8/10dBi, N Female*2 , 166*140*30mm

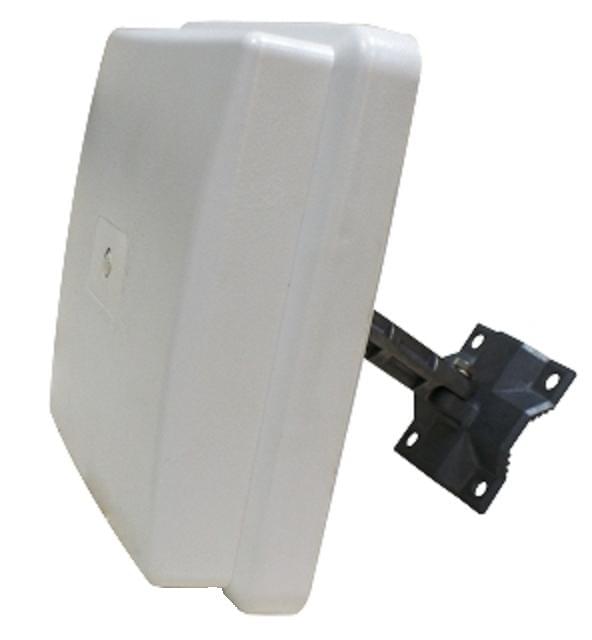

tri-polarization dual band, Wi-fi
PA3L-A08-0810
2400-2500/5100-5900MHz8/10dBi, N Female*3, 198*198*60mm
2.4/5GHz, dual band, Wi-fi,
PAL-M08-0812
2400-2700/5100-5900MHz8/12dBi, N Female, 166*140*30mm
3.5GHz, Wi-Max
PA-M03
3400-3600MHz, 12dBi, N Female, 166*140*30mm
3.5GHz, Wi-Max
PA-L03
3200-3800MHz, 18dBi, N Female, 330*295*35mm
Dual polarization 3.5GHz, Wi-Max
PA2M-Q08-1212
3300-3800MHz, 12dBi, N Female*2, 256*226.5*19mm
Dual polarization 3.5GHz, Wi-Max
PA2M-L08-1616
3300-3800MHz, 16dBi, N Female*2, 330*295*30mm
5GHz, Wi-fi, Zigbee
PA-M02
5100-5835MHz, 14 dBi, N Female, 166*140*30mm
5GHz, Wi-fi, Zigbee
PA-T02L
5100-5835MHz, 14dBi, N Female, 140*165*14.5mm
Dual polarization 5GHz, Wi-fi
PA2N-T08-1515
5150-5875MHz, 15dBi, N Female*2, 162.5*137.5*16mm
5GHz, Wi-fi, Zigbee
PAN-Q08-18
5100-5900MHz, 18dBi, N Female, 256*226.5*19mm
5GHz, Wi-fi, Zigbee
PA-L02
5100-5835MHz, 20dBi, N Female, 330*295*35mm

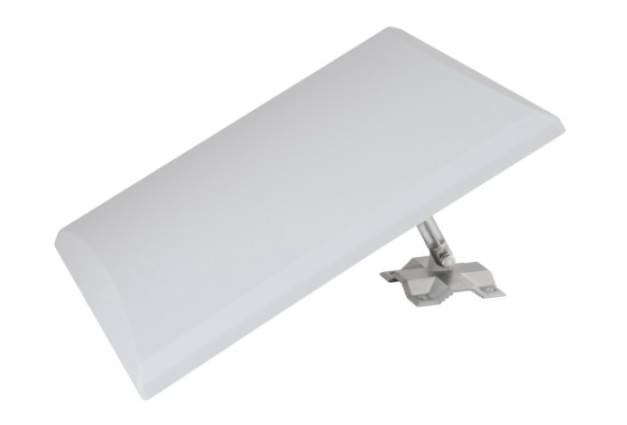

Dual polarization 5GHz, Wi-fi
PA2N-L08-2222
5100-5900MHz, 22dBi, N Female*2, 330*295*12mm
5GHz, Wi-fi, Zigbee
PA-Z02
4900-5800MHz, 23dBi, N Female, 322.6*322.6*12mm
Dual polarization 5GHz, Wi-fi
PA2N-X08-2424
5100-5900MHz, 24dBi, N Female*2, 410*410*45mm

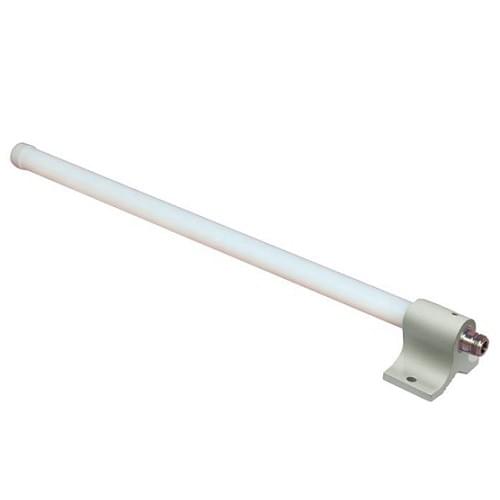

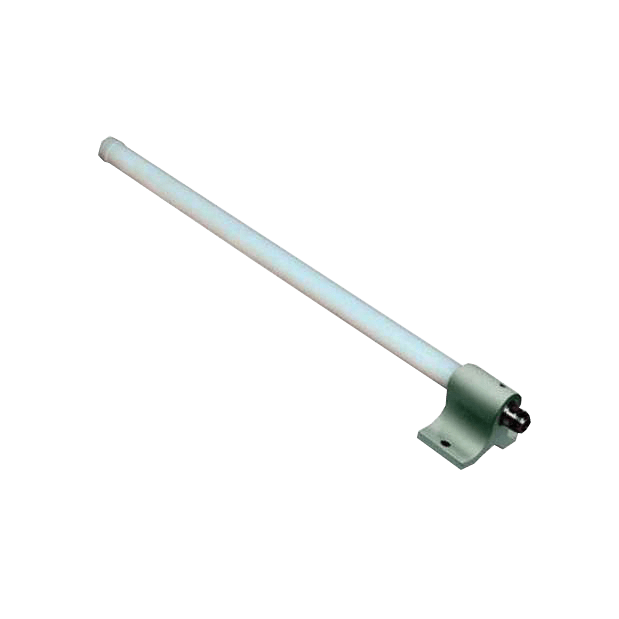

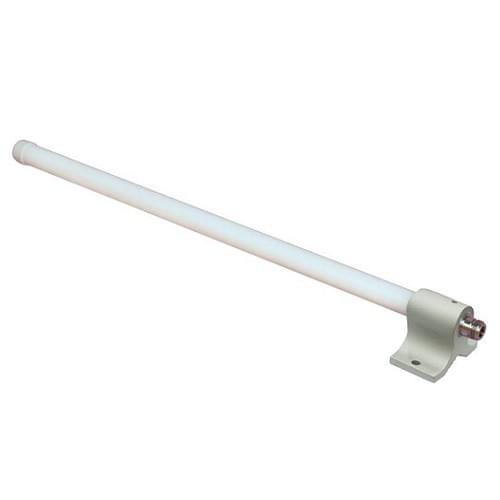

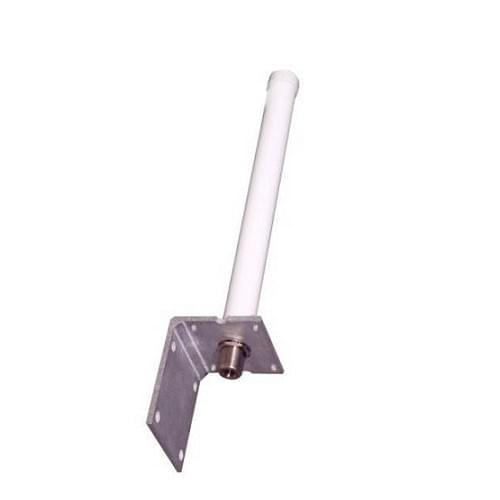

OMNI antenna
50Ohm antenna, Most is Linear Vertical polarization , few are dual polarization. Horizontal in 360°, Good to use in multipoint wireless transmission.
330MHz, CB. Ham radio
OEQ-004
320-350MHz, 5dBi, N Female, Ø30*1420mm

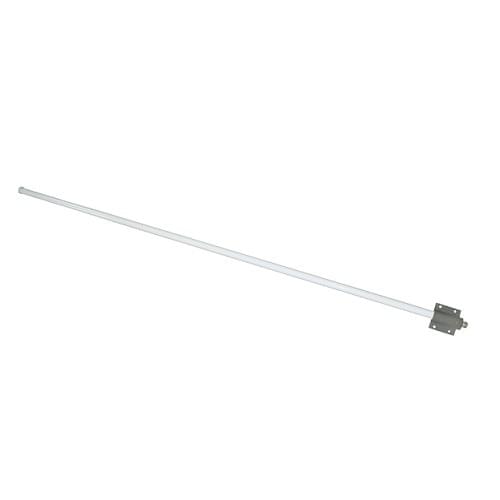

370MHz Ham radio
OEQ-008
370-374MHz, 5dBi, N Female, Ø30*1000mm
430MHz Ham radio
OEQ-08-4245
425-450MHz, 5dBI, N Female, Ø20*1100mm
450MHz Ham radio, Russia mobil
OEQ-08-4346
430-460MHz, 5dBi, N FEMALE, Ø20*1100mm
480MHz Ham radio
OEQ-003
460-500MHz, 5dBi, N FEMALE, Ø20*1100mm
Ham CB radio
OEQ-00
536-542MHz, 5dBi, N FEMALE, Ø20*1100mm
4G, CB radio
OCB-207-03
750-800MHz, 3dBi, N Male, Ø20*295mm
4G, CB radio
OCQ-207-02
750-830MHz, 2dBi, N Male, Ø24*222mm
4G, CB radio
OCQ-002
760-800MHz, 6dB, iN Male, Ø27*934mm
AMPS, mobile
OCQ-001
770-830MHz, 3dBi, N Male, Ø27*514mm
GSM Lora sigfox
OCA-07-8696-02
860-960MHz, 2dBi, N Male, Ø22*213mm
Remote Lora sigfox
OCA-607-05
860-960MHz, 5dB,i, N MaleØ20*610mm

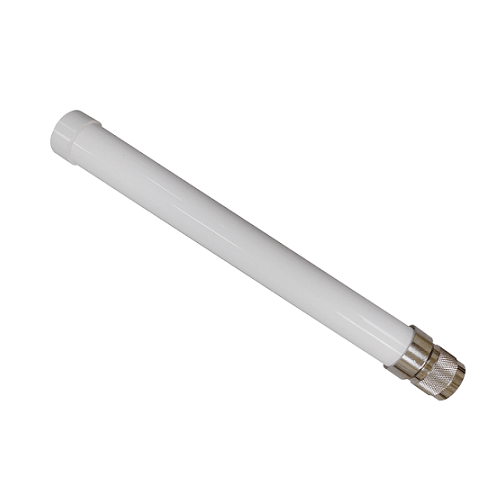

GSM, Lora sigfox
OEA-001
860-960MHz, 3dBi, N Female, Ø30*570 mm
GSM Lora sigfox
OE-08-8690-05
868-902MHz, 5dBi, N Female, Ø30*960mm
Remoter Lora sigfox
OCA-07-9093-02
900-930MHz, 2dBi, N Male, 235.5*22mm
GSM tracker Lora base station
OLA-08-02
900-930MHz, 2dBi, N Female, 208*22mm
OCA-001
OCA-001
900-930MHz, 4dBi, N Male, Ø27*448mm
OE-08-9093-05
OE-08-9093-05
900-930MHz, 5dBi, N Female, Ø30*735mm
OEG-001
OEG-001
1090MHz, 5dBi, N Female, Ø30*409mm
ADS-B
OEG-08-07
1090MHz7dBiN FemaleØ30*605mm
OCU9-07-03
OCU9-07-03
700-960/1500-2700MHz2/3dBi, N Male, Ø20*203mm
OYB-08-0204
OYB-08-0204
700-960/1710-2700/3300-3800/4900-5900MHz:2/4dBi, N FEMALE, Ø80*305mm
OYU4-07-3-040806
OYU4-07-3-040806
760-960/1710-2170/2300-700MHz :4/8/6dBi, N Male, Cable*30cm, Ø80*850mm
OEU2-05000-02-3
OEU2-05000-02-3
790-862/1710-2180/2300-2700MHz:0dBiSMA Male,cable5M, Ø20*280mm
OEU2-08-03
OEU2-08-03
790-862/1710-2180/2300-2700MHz: 1/3/3dBi, N Female, Ø22*240mm
OE-001
OE-001
2400-2483.5MHz, 7dBi, N Female, Ø30*409mm
OE-002
OE-002
2400-2483.5MHz, 9dBi, N Female, Ø30*610mm
OE-003
OE-003
2400-2483.5MHz, 12dBi, N Female, Ø30*960mm
OE-004
OE-004
2400-2483.5MHz, 5dBi, N Female, Ø30*374mm
OE-004
OE-004
2400-2483.5MHz, 5dBi, N Female, Ø30*374mm
OCD-07-05
OCD-07-05
2400-2483.5MHz ,5dBi, N Male, Ø27*310mm
OCD-07-07
OCD-07-07
2400-2483.5MHz ,7dBi, N Male, Ø27*416mm
OCD-07-09
OCD-07-09
2400-2483.5MHz ,9dBi, N Male, Ø27*608mm
OLD-NUD08-07
OLD-NUD08-07
2400-2500MHz, 7dBi, N Female, Ø24*405mm
OEX-002
OEX-002
2500-2700MHz, 9dBi, N Female, Ø20*558.8mm
OY2D-07-3-0808
OY2D-07-3-0808
2400-2500MHz,8dBi, N Male, CABLEØ80*635mm
OLL-08-0506
OLL-08-0506
2400-2483.5/4900-5900MHz: 5/6dBi, N Female Ø22*283.5mm
OEL-08-0508
OEL-08-0508
2400-2500/5150-5900MHz: 5/8dBi N Female, Ø30*409mm
OEL-08-0710
OEL-08-0710
2400-2500/5100-5900MHz:7/7/10dBi, N Female, Ø30*735mm
OCL-001
OCL-001
2400-2500/4900-5900MHz: 3-5/5-6dBi, N Male, Ø22*203mm
OCL-002
OCL-002
2400/4900-5900MHz: 5/4dBi, N Male, Ø22*213mm
OY2L-0708-0608
OY2L-0708-0608
2400-2500/5100-5900MHz: 6/8dBi, Port 1-N FemalePort 2-N Male, 80*850mm
OC-009
OC-009
3400-3600MHz, 10dBi, N Male, Ø27*590mm
OE-009
OE-009
3400-3600MHz, 10dBi, N Female, Ø30*610mm
OE-010
OE-010
3400-3600MHz, 12dBi, N Female, Ø30*840mm
OC-006
OC-006
5100-5500MHz, 10dBi, N Male, Ø27*404mm
OE-006
OE-006
5100-5500MHz, 10dBi, N Female, Ø30*502.5mm
OE-008
OE-008
5100-5500MHz, 12dBi, N Female, Ø28*610mm
OC-007
OC-007
5500-5835MHz, 12dBi, N Male, Ø27*635mm
OCN-07-5158-09
OCN-07-5158-09
5150-5825MHz, 9dBi, N Male, Ø27*270mm
OCN-07-5660-09
OCN-07-5660-09
5150-5825MHz, 9dBi, N Male, Ø27*270mm
OE-005
OE-005
5400-5835MHz, 10dBi, N Female, Ø30*409mm
OE-007
OE-007
5400-5835MHz, 12dBi, N Female, Ø30*559mm
OY2N-0708-0709
OY2N-0708-0709
5100-5900MHz:7/9dBi, PORT1-N Female, PORT2-N Male, Ø80*445mm
OY2N-5864-08-1112
OY2N-5864-08-1112
5800-6400MHz:12/11dBi, N Female*2, Ø80*635mm
OCU5-07-02
OCU5-07-02
:5G antenna
652-960MHz /1710-2700MHz/3300-5925MHz: -4 -5dBi, N Female, Ø22*213mm
Sector antenna
50Ohm antenna, Most is Linear Vertical polarization , few are dual polarization. Horizontal in wide , Good to use in multipoint wireless transmission.
SF2D-01-1212-60
Dual polarization antenna
2400-2500MHz: 12dBi SMA*2 cable:1M, 1192*185*74mm

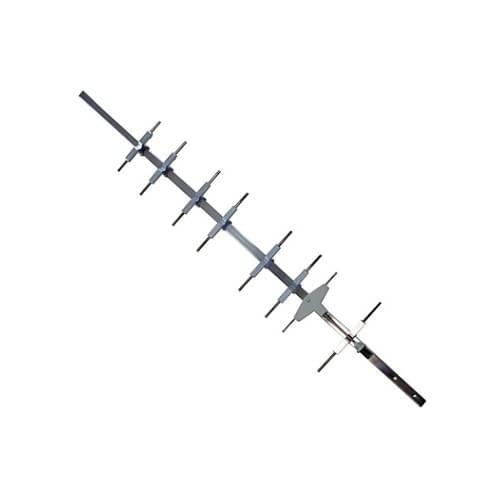

Yagi antenna
50Ohm antenna, Most is Linear Vertical polarization , . good be used outdoor system in point to point long distance wireless transmission.
YBQ-003
YBQ-003
320-350MHz, 9dBi, N Female, 1546*420mm
Ham radio RFID
YBQ-08-4246-10
420-460MHz, 10dBi, N Female, 870*386mm
YBQ-001
YBQ-001
460-500MHz, 10dBi, N Female, 1137*335.8mm
YBQ-002
YBQ-002
520-560MHz, 12dBi, N Female, 1036*301mm
YBQ-7075-08-13
YBQ-7075-08-13
700-750MHz, 13dBi, N Female, 1136*210mm
YBQ-7580-08-14
YBQ-7580-08-14
750-800MHz, 14dBi, N Female, 1136*210mm
RFID GSM
YBA-001
860-950MHz10dBiN Female941*208.3mm
YBA-002
YBA-002
860-950MHz, 12dBi, N Female, 1144*208.7mm
YBA-003
YBA-003
824-894MHz, 12dBi, SMA Female, 700*205mm
Wi-fi Zigbee system
YA-R01
2400-2483.5MHz, 8dBi, N Female, ø80*220mm
Wi-fi Zigbee system
YA-R02
2400-2483.5MHz, 10dBi, N Female, ø80*305mm
Wi-fi Zigbee system
YA-R03
2400-2483.5MHz, 12dBi, N Female, ø80*446mm
Wi-fi Zigbee system
YA-R04
2400-2483.5MHz, 15dBi, N Female, ø80*635mm
Wi-fi Zigbee system
YA-R05
2400-2483.5MHz, 18dBi, N Female, ø80*851mm
Heavy Duty antenna
50Ohm antenna, Most is Linear Vertical polarization , some are dual/multi polarization. good used outdoor in multipoint , non directional wireless transmission. Car, roof, Kiosk, train, boat, Vessel using.
MA2U6-04000-02-8
MA2U6-04000-02-8
450/1710-2170/ 2300-2700MHz, SMA MALE*2, cable,4M,*2, Ø90*40.5mm
MA2U-01500-02-8
MA2U-01500-02-8
1710-2170/2300-2700MHz, SMA MALE*2, cable:,1.5M*2, Ø90*40.5mm
MA3M-00500-02-8
MA3M-00500-02-8
3200-3800MHz, SMA MALEx3, CABLE:,0.5M*3, Ø90*40.5mm
MBB-01000-02-8
MBB-01000-02-8
700-960/1710-2170/ 2400-3800/4900-5900MHz, 2/3dBi, SMA MALE*1, cable*1M, Ø120*78mm
MB2U2L-01000-0102-8
MB2U2L-01000-0102-8
700-960/1710-2700/ 2400-2500/4900-5900MHz, 2/3dBi, LTE-SMA MALE *2, WiFi-RP-SMA *2, cable*1M*4, Ø120*78mm
CA-01000-01-9
CA-01000-01-9
2400-2483.5MHz, 5dBi, SMA MALE RS, RG-178*1M, Ø95*55mm
CA-W01000-01-9
CA-W01000-01-9
2400-2483.5MHz, 5dBi, SMA MALE RS, RG-178*1M, Ø95*55mm
CAL-01000-01-9
CAL-01000-01-9
2.4-2.5/5.1-5.9GHz :3/5dBiSMA Male RS RG-178*1M, Ø95*55mm
CA2L-01000-01-1
CA2L-01000-01-1
2.4-2.5/5.1-5.9GHz: 3/5dBi, SMA Male RS, RG-178 :1M*2, Ø95*55mm
CA3L-01000-01-1
CA3L-01000-01-1
2.4-2.5/5.1-5.9GHz: 3/5dBi, SMA Male RS, RG-178 :1M*3, Ø95*55mm

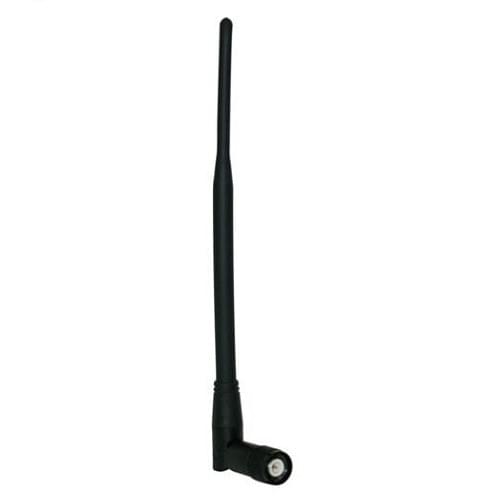

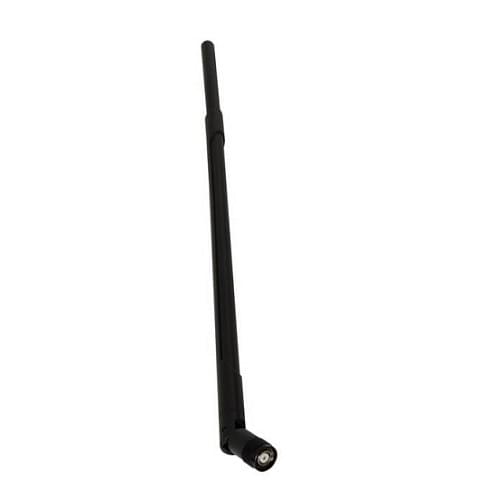

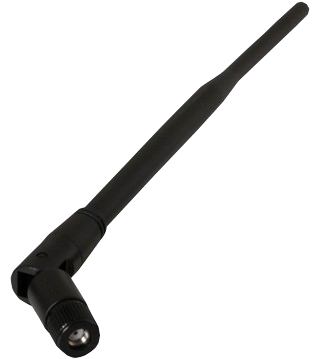

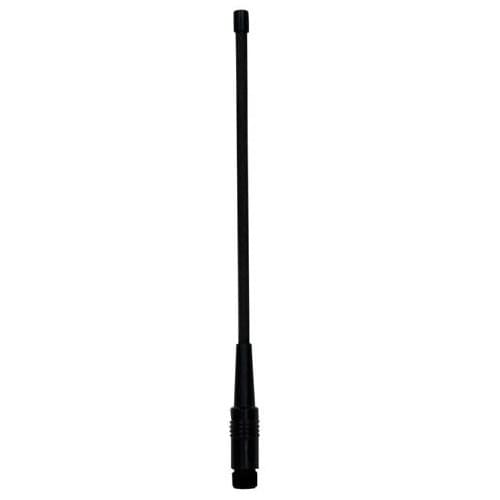

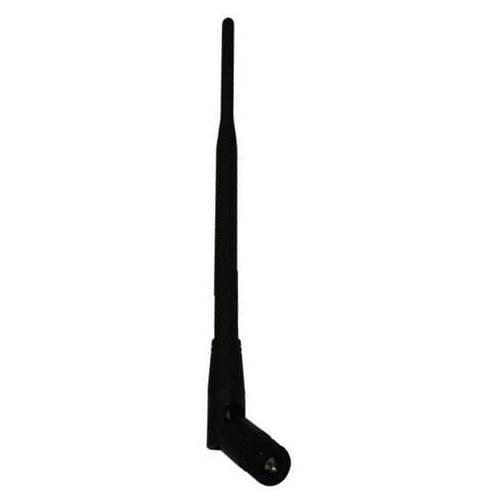

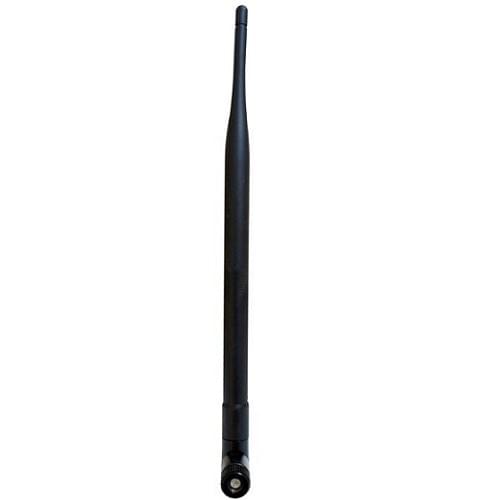

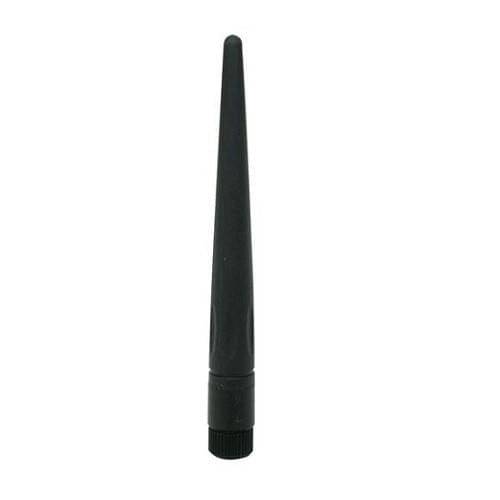

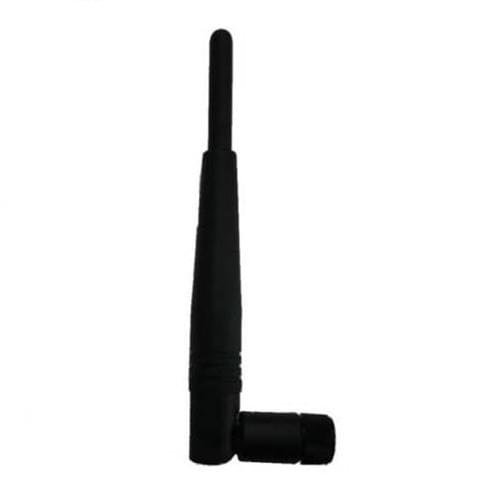

Rubber antenna
50Ohm antenna, Linear, Vertical , use to cooperate with wireless equipment. Non direction! using wireless system, router, switching, module,
RBQ-009
RBQ-009
77-84MHz, BNC Male, Ø14.5*495mm
RBQ-007
RBQ-007
136MHz, BNC Male, Ø14.5*375mm
RBQ-008
RBQ-008
136MHz, SMA Male, Ø14.5*375mm
RBQ-2733-02
RBQ-2733-02
270-330MHzSMA MaleØ13*262mm
RBQ-3335-02
RBQ-3335-02
330-355MHz, SMA Male, Ø13*232mm
RBQ-4044-02
RBQ-4044-02
400-440MHz, SMA Male, Ø13*181mm
RBQ4-4046-02
RBQ4-4046-02
400-460MHz1.5dBiSMA MaleØ14.5*169mm
RBQ4-4145-29
RBQ4-4145-29
410-450MHz, 1.5dBi, BNC Male, Ø15.5*180mm
RAQ-H02-01
RAQ-H02-01
415-450MHz, 1dBi, SMA Male, Ø13*210mm
RBQ2-4344-29
RBQ2-4344-29
430-440MHz, 1.7dBi, BNC MaleØ15.5*510mm
RBQ-4347-02
RBQ-4347-02
430-470MHz, SMA Male, Ø14.5*176mm
RBQ-004
RBQ-004
433MHzSMA MaleØ14.5*175.4mm
RA-H06-4344
RA-H06-4344
434MHz, 2dBi, TNC Male, Ø14.5*212mm
RBQ-003
RBQ-003
435MHz,SMA Male, Ø14.4*399mm
RBQ-H06
RBQ-H06
465MHz,TNC Male, Ø14.5*182.56mm
RAQ-H06
RAQ-H06
465MHz,1.2dBi, TNC Male, Ø14.5*212mm
RBQ-1442-02
RBQ-1442-02
149/418MHz, SMA Male, Ø14.5*495mm
RBQ-005
RBQ-005
145/435MHz, BNC Male, Ø14.5*490mm
RBQ-006
RBQ-006
143-145/433-435MHz, 2dBi, SMA Male, Ø13*505mm
RAQ-N7080-02-02
RAQ-N7080-02-02
703-803MHz, 2dBi, SMA Male, Ø13*240mm
RAQ-M06
RAQ-M06
760-830MHz2dBiTNC MaleØ14.5*336mm
RBA-M07
RBA-M07
760-800MHz, 2dBi, N Male, Ø20*330mm
RBQ4-8293-06-G
RBQ4-8293-06-G
824-930MHz, 1.5dBi, TNC Male, Ø14.5*81mm
RAA-H02-868
RAA-H02-868
853-883MHz, 1.5dBi, SMA Male, Ø13*210mm
RAA-H02-868
RAA-H02-868
853-883MHz, 1.5dBi, SMA Male, Ø13*210mm
RAA-E00030-09-5A
RAA-E00030-09-5A
855-883MHz, 0dBi, IPEX, Ø10*105mm
RAA-E00030-10-1
RAA-E00030-10-1
868MHz, 0dBi, RG-178, Ø9.4*107mm
RBQ2-8692-29
RBQ2-8692-29
860-920MHz, 0dBi, BNC Male, Ø15.5*242mm
RBQ4-8692-29
RBQ2-8692-29
860-920MHz, 1.5dBi, BNC Male, Ø15.5*81.5mm
RAA-H01
RAA-H01
860-960MHz, 1.5dBi, SMA Male RS, Ø13*210mm
RAA-H02
RAA-H02
860-960MHz, 1.5dBi, SMA Male Ø13*210mm
RAA-N05
RAA-N05
860-960MHz, 3dBi, TNC Male RS, Ø14.5*203mm
RBA-H07-02
RBA-H07-02
868MHz2dBiN MaleØ20*198mm
RLA-H07-02
RLA-H07-02
868MHz,2dBi, N Male, Ø20*206mm
Right angle
RBQ2-868-29
RBQ2-868-29
868MHz, 3dBi, (Need grounded)BNC Male, Ø15.5*260mm
RAA-H29-920
RAA-H29-920
902-928MHz, 1dBi, BNC Male, Ø14.5*213mm
RAA-H02-920
RAA-H02-920
902-928MHz, 1dBi, SMA Male, Ø14.5*210mm
RAA-L01-05
RAA-L01-05
902-928MHz, 5dBi, SMA Male RS, Ø13*385mm
RAA-L02-05
RAA-L02-05
902-928MHz, 5dBi, SMA Male, Ø13*385mm
RAA-L05-05
RAA-L05-05
902-928MHz, 5dBi, TNC Male RS, Ø13*390mm
RAA-H06-01
RAA-H06-01
916-921MHz, 1dBi, TNC Male, Ø14.5*212mm
RSU-I01500-01-8
RSU-I01500-01-8
900/1710-2170MHz2dBiSMA Male RS22.2*165mm
RAU-D07
RAU-D07
850/1900/2100MHz, 1/2dBi, N Male, Ø20*148.28mm
RAU-D01
RAU-D01
824-860/1850-2100MHz, 1.6/2dBi, SMA Male RSØ13*140mm
RAU9-P02-03
RAU9-P02-03
700-960/1500-2700MHz, 3dBi, SMA Male, 26*219mm
RBU-D02
RBU-D02
824-860/1850-2100MHz, 1.6/2dBi, SMA Male, Ø13.4*114mm
RLU-D01
RLU-D01
824-896/1850-1990MHz, 3dBi, SMA Male RS, Ø13*134.5mm
Right angle
RLU-D02
RLU-D02
824-896/1850-1990MHz, 3dBi, SMA Male, Ø13*134.5mm
Right angle
RAU-D02
RAU-D02
824-896/1850-1990MHz, 1/3dBi, SMA Male, Ø13*140mm
RAC-C01
RAC-C01
900/1800MHz, 2dBi, SMA Male RS, φ13*137mm
RAC-D02
RAC-D02
900/1800MHz, 2dBi, SMA Male, Ø13*140mm
RAC-D07
RAC-D07
900/1800MHz, 2dBi, N Male, Ø20*147.9mm
RAC-J01
RAC-J01
900/1800MHz, 2dBi, SMA Male RS, 26*219.6mm
RAC-E00100-04-1
RAC-E00100-04-1
900/1800MHz, 0dBi, MMCX Male R/A,
RG-178*10cm, Ø9.4*104.5mm
RBG-H06
RBG-H06
1059-1060MHz, 2dBi, TNC Male, Ø14.5*182.56mm
RAT-M06
RAT-M06
1150-1300MHz, 3dBi, TNC Male, Ø14.5*336mm
RAT-H02
RAT-H02
1200-1500MHz, 2dBi, SMA Male, Ø13*207mm
RAB-C01
RAB-C01
1750-1950MHz, 3dBi, SMA Male RS, Ø13*137mm
RAW-N01
RAW-N01
2300-2500MHz, 5dBi,SMA Male RS,
Ø13*200mm
RA-A01
RA-A01
2400-2483.5MHz, 2dBi, SMA Male RS, Ø10*105mm
RA-A02
RA-A02
2400-2483.5MHz, 2dBi, SMA Male, Ø10*105mm
RA-C01
RA-C01
2400-2483.5MHz,3dBi, SMA Male RS, Ø13*137mm
RA-C02
RA-C02
2400-2483.5MHz,3dBi, SMA Male, Ø13*137mm
RA-C05
RA-C05
2400-2483.5MHz,3dBi, TNC Male RS, Ø14.5*143mm
RA-C07
RA-C07
2400-2483.5MHz,3dBi,, N Male, Ø20*148mm
RO-C01
RO-C01
2400-2483.5MHz, 3dBi, SMA Male RS, Ø16*144mm
RB-H06
RB-H06
2400-2483.5MHz, 4dBi, TNC Male, Ø14.5*182.56mm
RA-H01
RA-H01
2400-2483.5MHz, 5dBi, SMA Male RS, Ø13*210mm
RA-H02
RA-H02
2400-2483.5MHz, 5dBi, SMA Male, Ø13*210mm
RA-H05
RA-H05
2400-2483.5MHz, 5dBi, TNC Male RS, Ø14.5*215mm
RA-H07
RA-H07
2400-2483.5MHz, 5dBi, N Male, Ø20*224mm
RB-H07
RB-H07
2400-2483.5MHz, 5dBi, N Male, Ø20*224mm
RA-M01
RA-M01
2400-2483.5MHz, 7dBi, SMA Male RS, Ø13*300mm
RA-M02
RA-M02
2400-2483.5MHz, 7dBi, SMA Male, Ø13*300mm
RA-M05
RA-M05
2400-2483.5MHz, 7dBi, TNC Male RS, Ø14.5*336mm
RA-M07
RA-M07
2400-2483.5MHz, 7dBi, N Male, Ø20*343mm
RA-L01
RA-L01
2400-2483.5MHz, 9dBi, SMA Male RS, Ø13*385mm
RA-L05
RA-L05
2400-2483.5MHz, 9dBi, TNC Male RS, Ø14.5*390mm
RA-L07
RA-L07
2400-2483.5MHz, 9dBi, N Male, 395*Ø20mm
RB-L07
RB-L07
2400-2483.5MHz, 9dBi, N Male, Ø20*370mm
RA-A02
RA-A02
2400-2500MHz, 2dBi, SMA Male, Ø10*105mm
RAX-H01
RAX-H01
2500-2700MHz, 5dBi, SMA Male RS, Ø13*210mm
RAX-M02
RAX-M02
2500-2700MHz, 6dBi, SMA Male, Ø13*300mm
RAL-T01-0202
RAL-T01-0202
2300-2500/4900-5850MHz, 2/2dBi, SMA Male RS, Ø15*91.9mm
RBL-T01-0204
RBL-T01-0204
2400-2500/5100-5975MHz, 2/4dBi, SMA Male RS, Ø15*59mm
RBL-G07
RBL-G07
2400-2500/5100-5975MHz, 2/4dBi, N Male, Ø22*81.4mm
RAL-C01-0204
RAL-C01-0204
2300-2500/5100-5900MHz, 2/4dBi, SMA Male RS, Ø13*137mm
RAL-C05-0204
RAL-C05-0204
2300-2500/5100-5900MHz, 2/4dBi, TNC Male RS, Ø14.5*143.5mm
RAL-P01-0305
RAL-P01-0305
2400-2500/4900-5900MHz, 3/5dBi, SMA Male RS, 26*220mm
RAL-J01
RAL-J01
2400-2500/4900-5900MHz, 3/5dBi, SMA Male RS, 26*220mm
RAL-J05
RAL-J05
2400-2500/4900-5900MHz, 3/5dBi, TNC Male RS, 26*220mm
RAM-H01
RAM-H01
3400-3600MHz, 5dBi, SMA Male RS, Ø13*210mm
RAM-M01
RAM-M01
3300-3600MHz, 8dBi, SMA Male RS, Ø13*300mm
RAM-M02
RAM-M02
3300-3800MHz, 7dBi, SMA Male, Ø13*300mm
RAN-C02-05
RAN-C02-05
4900-5900MHz, 5dBi, SMA Male, Ø13*137mm
RAN-A01-03
RAN-A01-03
5100-5900MHz, 2dBi, SMA Male RS, Ø13*137mm
RAN-C01-05
RAN-C01-05
4900-5900MHz, 5dBi, SMA Male RS, Ø13*137mm
RBN-C01-05
RBN-C01-05
4900-5900MHz, 5dBi, SMA Male RS, Ø13*115.5mm
RBN-C02-05
RBN-C02-05
4900-5900MHz, 5dBi, SMA Male, Ø13*115.5mm
RAN-N01
RAN-N01
5100-5800MHz, 6dBi, SMA Male RS, Ø13*197.2mm

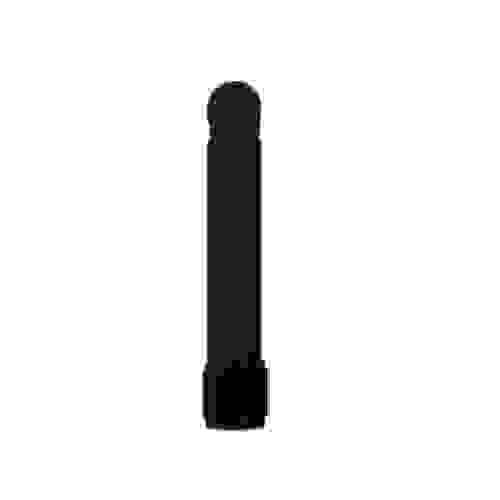

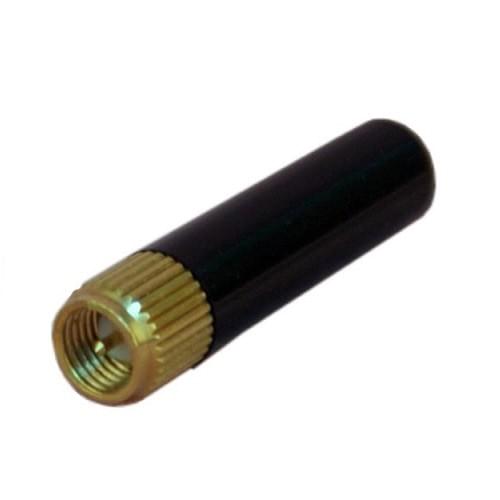

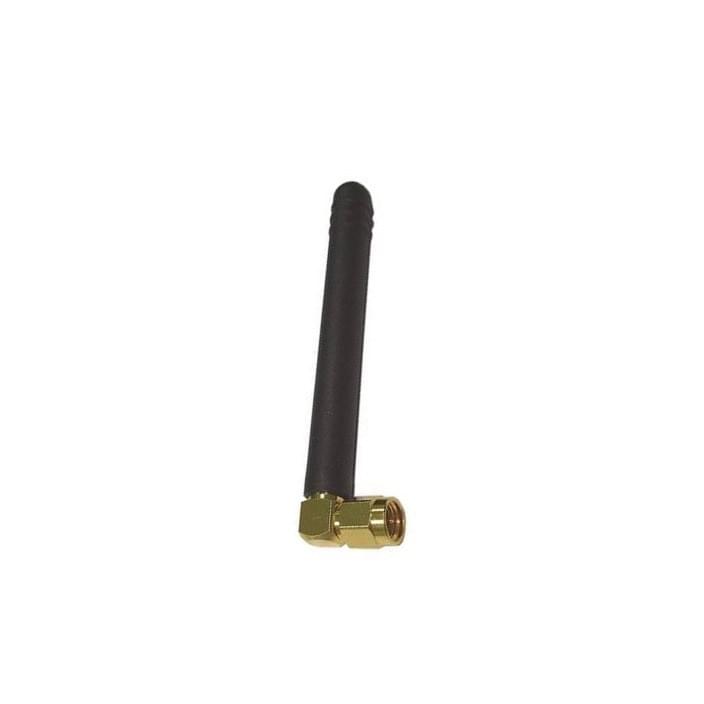

Stubby antenna
50Ohm antenna, Linear, Vertical , use to cooperate with wireless equipment. Non direction! Using wireless sytem, car tracker, bluetooth,

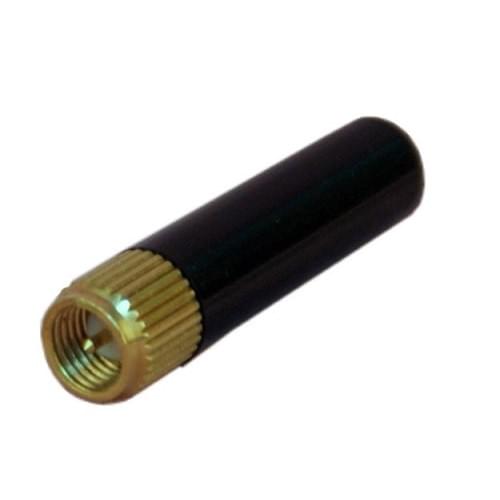

Ham radio, RFID,
SBQ-02-4344
430-440MHz, 0dBi, SMA MALE, Ø8*32mm

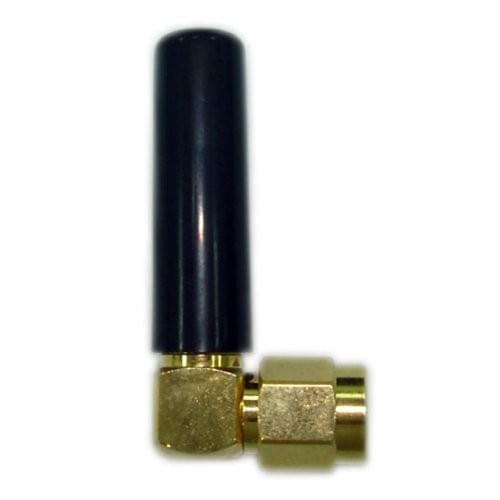

Ham radio, RFID,
SBQ-19-4344
430-440MHz, 0dBi, SMA MALE R/A, Ø8*38mm
RFID, SUB 1G
SBA-01-01
868MHz, 0dBi, SMA MALE RS, Ø10*50.07mm
Z-Wave
SBA--01-02
916MHz, 0dBi, SMA MALE, Ø10*50mm
Z-WAVE
SBA-A102
916MHz, 0dBi, SMA MALE, Ø10*50mm
GSM
SBC-01
900/1800MHz, 0dBi, SMA MALE RS, Ø8*32mm
GSM
SBC-02
900/1800MHz, 0dBi, SMA MALE, Ø8*32mm
GSM Car tracker
SBC-19
900/1800MHz, 0dBi, SMA MALE R/A, Ø8*34mm

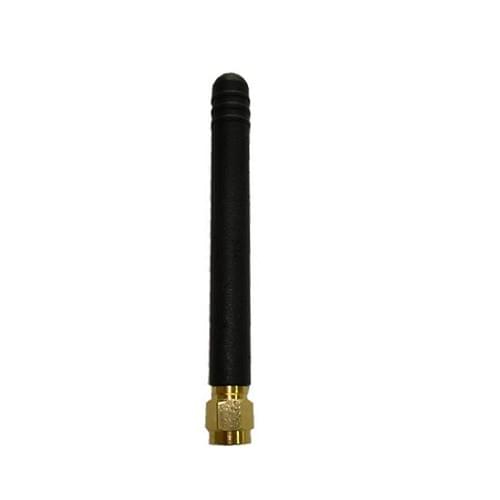

3g Car tracker
RBU-F401
824-960/1710-2170MHz, 0dBi, SMA MALE RS, Ø8*78mm
3G Car tracker
RBU-F402
824-960/1710-2170MHz, 0dBi, SMA MALE, Ø8*78mm
RBU-F419
RBU-F419
824-960/1710-2170MHz, 0dBi, SMA MALE R/A, Ø16.7*76mm
RBW-F402
RBW-F402
2.3-2.5GHz, 2dBi, SMA MALE, Ø8*78mm
SB-01
SB-01
2.4-2.483GHz, 0dBi, SMA MALE RS, Ø8*32mm
SB-02
SB-02
2.4-2.483GHz, 0dBi, SMA MALE, Ø8*32mm
SB-19
SB-19
2.4-2.483GHz, 0dBi, SMA MALE R/A, Ø8*34mm
SB-28
SB-28
2.4-2.483GHz, 0dBi, SMA MALE RS R/A, Ø8*34mm
RB-F101
RB-F101
2.4-2.4835GHz, 1dBi, SMA MALE RS, Ø9.5*56.4mm
RB-F128
RB-F128
2.4-2.5GHz, 1dBi, SMA MALE RS R/A, Ø8*55mm
RB-F401
RB-F401
2.4-2.4835GHz, 2dBi, SMA MALE RS, Ø8*78mm
RB-F402
RB-F402
2.4-2.4835GHz, 2dBi, SMA MALE, Ø8*78mm
RB-F419
RB-F419
2.4-2.4835GHz, 2dBi, SMA MALE R/A, Ø8*76mm
RB-F428
RB-F428
2.4-2.4835GHz,2dBi,SMA MALE RS R/A, Ø8*76mm
RBN-F402-02
RBN-F402-02
5.1-5.9GHz, ,1.5dBi, SMA MALE, Ø8*78mm
SBE-19
SBE-19
5.5-5.835GHz, 1dBi, SMA MALE R/A, Ø8*34mm
SBL-01
SBL-01
2.4-2.485/5.15-5.875GHz, 1/1.5dBi, SMA MALE RS, Ø8*32mm
SBL-02
SBL-02
2.4-2.485/5.15-5.875GHz,, 1/1.5dBi, SMA MALE Ø8*32mm
SBL-19
SBL-19
2.4-2.4835/5.15-5.875GHz, 2/2.5dBi, SMA MALE R/A, Ø8*34mm
SBL-28
SBL-28
2.4-2.485/5.15-5.875GHz,, 1/1.5dBi, SMA MALE RS R/A Ø8*32mm
RBL-F102
RBL-F102
2.4-2.5/5.5-5.9GHz, 1.5/3dBi, SMA MALE, Ø9.5*56.4mm

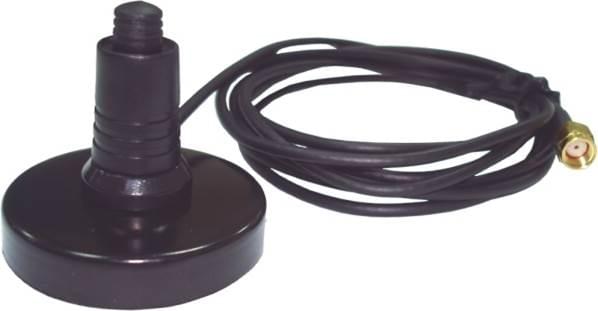

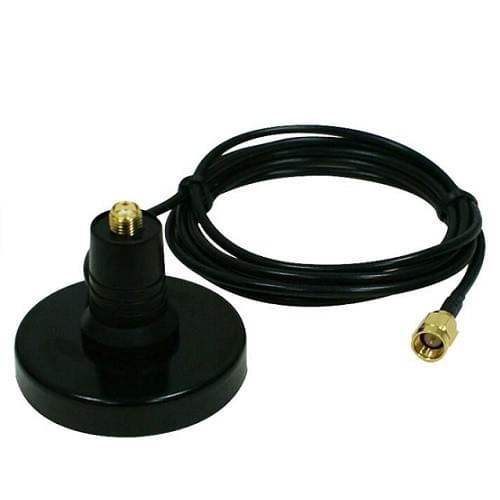

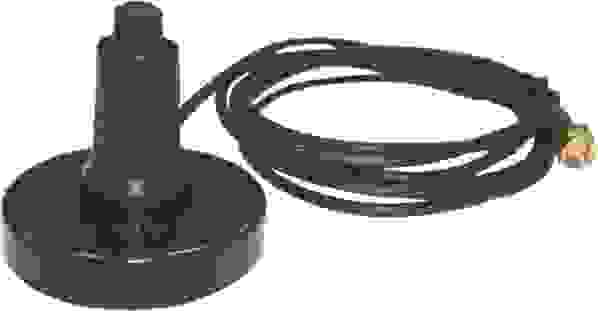

Whip antenna
50Ohm antenna, Linear Vertical polarization , Can with magnetic base for Van mobile using.
Ham radio magnetic antenna
WPQ-103000-02-B
144/433MHz, 1/2dBi, RG58U*3M, SMA Male,Ø76.8*505mm
RFID magnetic antenna
WPQ-103000-29-B
410-450MHz, 2dBi, RG58U*3M, BNC MALE, Ø76.8*507mm
Rola magnetic antenna
WPQ-105000-29-B
410-450MHz, 2dBi, RG58U*5M, BNC MALE, Ø76.8*507mm
sub-1G magnetic antenna
WPA-502500-02-8
824-894MHz, 100*cable*2.5M, SMA MALE, Ø27*89.8mm
Z-WAV magnetic antenna
WPA-103000-29-B
860-920MHz, 3dBi(Need grounding), RG-58U*3M, BNC MALE, Ø76.8*357mm
Rola magnetic antenna
WPA-105000-29-B
860-920MHz, 3dBi(Need grounding), RG-58U*5M, BNC MALE, Ø76.8*357mm
3G magnetic antenna
WPU-501500-02-8
700-960/1710-2170MHz, 1/2dBi, 100CABLE*1.5M, SMA MALE, Ø30*92.5mm

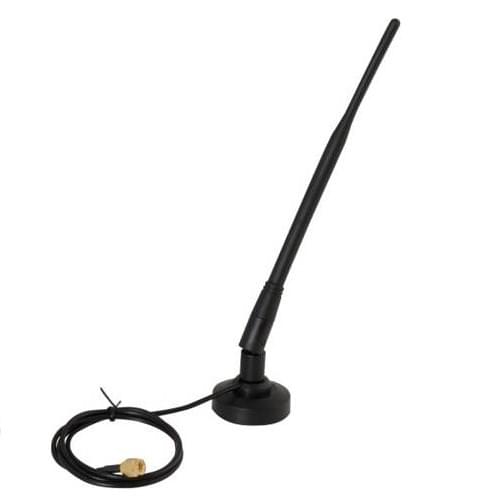

Wi-fi magnetic antenna
WPD-501200-01-8-07
2400-2500MHz , 7dBi, 100CABLE*1.2M, SMA MALE RS, Ø30*233mm
Zigbee magnetic antenna
WPD-501200-02-8-07
2400-2500MHz , 7dBi, 100CABLE*1.2M, SMA MALE , Ø30*233mm
Wi-fi magnetic antenna
WPD-501200-05-8-07
2400-2500MHz , 7dBi, 100CABLE*1.2M, TNC MALE RS , Ø30*225mm

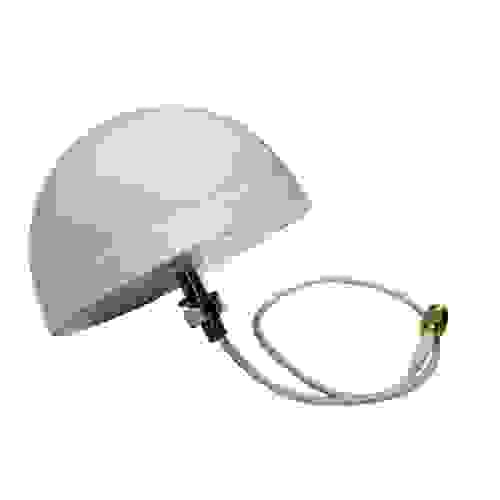

Miniature antenna
50Ohm antenna, Linear Vertical polarization , use indoor /outdoor wireless equipment directly. Kiosk, system box, Industry machine, car mobile using.
CCU3-01000-02-8
CCU3-01000-02-8
700-960/1710-2700MHz, 1/3dBi, SMA MALE, CABLE*1M, Ø23*62.5mm
CCD-00100-01-1-02
CCD-00100-01-1-02
2.4-2.5GHz, 2.5dBi, SMA MALE RS, RG-178*10cm, Ø22*22mm
CCD-00300-09-1-01
CCD-00300-09-1-01
2.4-2.5GHz, 1dBi, IPEX,(U.FL) RG-178*30cm, Ø22*22mm
CCL-00100-01-1
CCL-00100-01-1
2.4-2.5/4.9-5.9GHz, 2.5/4dBi, SMA MALE RS, RG-178*10cm, Ø22*22mm
CCL-00100-09-1
CCL-00100-09-1
2.4-2.5/4.9-5.9GHz, 2.5/4dBi, IPEX(U.FL), RG-178*10cm, Ø22*22mm
CCL-00300-01-1
CCL-00300-01-1
2.4-2.5/4.9-5.9GHz, 2.5/4dBi, SMA MALE RS, RG-178*30cm, Ø22*22mm
CCLW-00200-09-1
CCLW-00200-09-1
2.4-2.5/4.9-5.9GHz, 1.5/3dBi, IPEX, RG-178*20cm, Ø22.3*12.8mm
CCCLW-00215-04-1
CCLW-00215-04-1
2.4-2.5/5.1-5.9GHz, 1.5/3dBi, MMCX MALE R/A, RG-178*21.5cm, Ø22.3*12.8mm
CCLW-00300-01-1
CCLW-00300-01-1
2.4-2.5/4.9-5.9GHz, 1.5/3dBi, SMA MALE RS, RG-178*30cm, Ø22.3*12.8mm
CCN-00180-04-1
CCN-00180-04-1
4.9-5.9GHz, 4dBi, MMCX MALE R/A, RG178*18cm, Ø22.3*12.8mm
CCN-00300-01-1
CCN-00300-01-1
4.9-5.9GHz, 4dBi, SMA MAEL RS, RG178*30cm, Ø22.3*12.8mm
CCL6-01000-01-1
CCN-00300-01-1 Wi-fi 6 antenna
2400-2500/5100-7125MHz: 4dBi, SMA MAEL RS, RG178*30cm, Ø22*71±2mm
Adhesive & Magnetic antenna & base
50Ohm antenna, Most is Linear Vertical polarization , few are dual polarization. used outdoor in Non dirctional wireless transmission. Glass or flat surface Stick or non-metal box
PAU1-K01500-02-8
PAU1-K01500-02-8
700~824/1710-2170/ 2300-2700MHz, 0.5/2/1dBi, SMA MALE, CABLE*1.5m, 154*29*4.2mm
PAU1-K01500-01-8
PAU1-K01500-01-8
700~824/1710-2170/ 2300-2700MHz, 0.5/2/1dBi, SMA MALE RS, CABLE*1.5m, 154*29*4.2mm
PAU2-K01500-02-8
PAU2-K01500-02-8
824-960/1710-2170/ 2300-2700MHz, 0.5/2/1dBi, SMA MALE , CABLE*1.5m, 154*29*4.2mm
PAU2-K01500-01-8
PAU2-K01500-01-8
824-960/1710-2170/ 2300-2700MHz, 0.5/2/1dBi, SMA MALE RS, CABLE*1.5m, 154*29*4.2mm
PAL-K01500-01-8
PAL-K01500-01-8
2400-2500/5100-5800MHz, 3/6dBi, SMA MALE RS, PRO-100*1.5M, 154*29*4.2mm
RS-I01500-01-8
RS-I01500-01-8
2400-2483.5MHz, 5dBi, SMA MALE RS, 22.2*165mm
RBL-C01000-01-8
RBL-C01000-01-8
2400-2500/4900-5900GHz, 2/4dBi, SMA MALE RS, PRO-100*1M, Ø13.6*185mm
RBL-C01000-01-8
RBL-C01000-01-8
2400-2500/4900-5900GHz, 2/4dBi, SMA MALE RS, PRO-100*1M, Ø13.6*185mm
RS-H01500-01-8
RS-H01500-01-8
2400-2483.5MHz, 5dBi, SMA Male RS, PRO-100*1.5M, Ø40.7*223mm
RS-J01500-01-8
RS-J01500-01-8
2400-2483.5MHz, 5dBi, SMA Male RS,PRO-100*1.5M Ø40.7*228mm
RSL-J01500-01-8
RSL-J01500-01-8
2400-2500/4900-5900MHz, 3/5dBi, SMA Male RS, PRO-100*1.5M, Ø40.7*226.82mm
RSL-P01500-01-8
RSL-P01500-01-8
2400-2500/4900-5900MHz, 3/5dBi, SMA Male RS, PRO-100*1.5M, Ø40.7*229mm
BA-101500-01-3
BA-101500-01-3
N FEMALE TO SMA MALE RS 200cable*1.5M, Ø77.4*44.6mm
BA-102000-29
BA-102000-29
N FEMALE TO BNC MALE, 200cable*2M, Ø77.4*44.6mm
BA-605000-0108-3
BA-605000-0108-3
SMA MALE RS TO N FEMALE, 200cable*5M, Ø125.8*46mm
BA-201500-01-8
BA-201500-01-8
SMA FEMALE RS TO SMA MALE RS 100/174cable*1.5M, Ø90*40mm
BA-301500-01-8
BA-301500-01-8
SMA FEMALE RS TO SMA MALE RS, 100/174cable*1.5M, Ø40.7*45.3mm
BA-401500-01-8
BA-401500-01-8
SMA FEMALE RS TO SMA MALE RS, 100/174cable*1.5M, Ø40.7*45.3mm
BA-401500-0211-8
BA-401500-0211-8
SMA FEMALE RS TO SMA MALE , 100/174cable*1.5M, Ø40.7*45.3mm
BW-201500-0112-8
BW-201500-0112-8
SMA FEMALE RS TO SMA MALE RS*3, 100/174cable*1.5M*3, 242.8*103.16mm
Enclosure & Accessories
Enclosure :IP65/ IP67, Plastic or Aluminum material. Cable accessories are for 50Ohm using. Repeat opening sealed box & Unvieral mounting bracket for any usage.
IP65 with L bracket
APS-001
2 screw for repeat assembly.Able to plus cable gland for multiple cable though. inside able to put device. 192*185*74mm
IP 67 with universal mounting kit
APM-001
Multi screws for repeat assembly. inside able to put device.with cable gland.IP67 plastic enclosure. 198*198*60.3mm
IP 67 with universal mounting kit
APL-001
Multi screws for repeat assembly. big space inside for multi devices, with cable gland. IP67 plastic enclosure. 372*342*63.5mm
IP 67 with universal mounting kit
APA-001
Whole of aluminum box , Multi screws for repeat assembly. inside big space for multi devices. IP67 Aluminum enclosure. 330*295*113mm
LP-003
LP-003

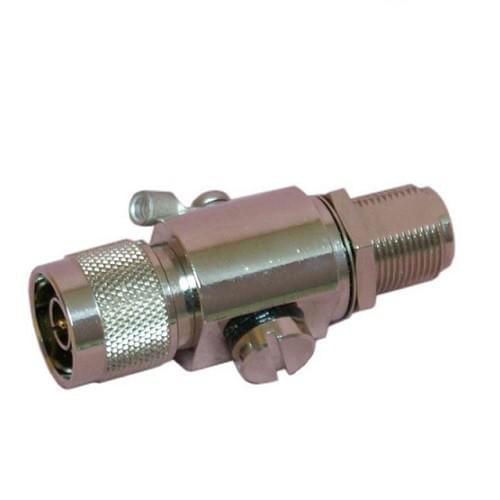

0~6GHz N FemaleTo N Male, Lightning protector, 65.8*24*30mm
MT-003
MT-003
Universal mounting kits, Aluminum / Zinc. 135*74*74mm
MT-009
MT-009
Universal mounting kits, Aluminum / Zinc., 74*74*135mm
MT-008
MT-008
Universal mounting kits, Whole stainless 100*88*177mm
MT-015
MT-015
Universal mounting kits, whole zinc, 50*74*125mm
MT-014
MT-014
Stainless bracket, 70*66.5*98mm
MT-016
MT-016
L type Aluminum bracket 57.8*57.8*70mm
MT-016-01
MT-016-01
L type Aluminum bracket, 57.8*57.8*70mm
MT-019
MT-019
L type Aluminum bracket, 78*83.5*132mm
CAP-5A002000911
CAP-5A002000911
RF 1.13IPEX TO SMA FEMALE 8HEX200mm
CAP-3003000107
CAP-3003000107

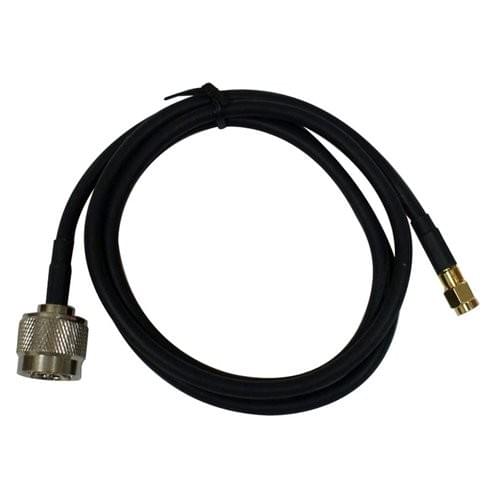

SMA MALE RS TO N MALE - cable 200*0.3M
CAP-3005000101
CAP-3005000101
SMA MALE RS TO SMA MALE RS, cable-200*0.5M
CAP-3010000107
CAP-3010000107
SMA MALE RS TO N MALE, cable-200*1M
CAP-3010000112
CAP-3010000112
SMA FEMALE RS TO SMA MALE RS, cable-200*1M
CAP-4010000707
CAP-4010000707
N MALE TO N MALE, CFD-400*1M
CAP-4050000707
CAP-4050000707
N MALE TO N MALE, CFD-400*5M
CAP-4100000708
CAP-4100000708
N MALE TO N FEMALE, CFD-400*10M
© 2022
